Manual Scissor Lift: Smooth Vertical Load and Operator Movement
Our Manual Scissor Lift is engineered with advanced hydraulic systems for smooth, precise, and reliable vertical movement of operators and loads.
About Manual Scissor Lift
A manual scissor lift is a material handling platform that raises and lowers loads using a manual hydraulic foot pedal system combined with a hand-controlled descent lever. The X-shaped scissor mechanism expands vertically when the operator pumps the foot pedal, lifting the platform smoothly. Unlike powered alternatives, manual scissor lifts require no electricity, batteries, or fuel; the operator provides all power through simple, intuitive foot and hand controls. Avcon’s Manual Scissor Lift delivers efficient, safe, and reliable vertical lifting with a user-friendly foot pedal and compact design for easy maneuvering in tight spaces. Built with heavy-duty steel and hydraulic precision, these lifts operate without external power, offering customisable load capacities and minimal maintenance needs, ideal for diverse industrial applications and enhancing workplace safety.
- No electricity required – completely manual
- Compact and easy to move
- Provides steady lifting for heavy loads
- Reduces physical strain on workers
Working of Manual Scissor Lift
A Manual Scissor Lift operates on a simple hydraulic mechanism that converts manual force into vertical lifting motion. It provides smooth, stable, and controlled lifting without the need for external power.
Step By Step Process:
1.Activation and Lifting:
When the operator presses the foot pedal, hydraulic fluid is pumped into the cylinder, pushing the piston out. This extends the scissor arms, raising the platform smoothly and steadily.
2. Stable Vertical Movement:
The hydraulic fluid is held in place by a check valve, keeping the platform stable at the desired height. The scissor arms expand and retract in sync, ensuring balanced vertical movement.
3. Lowering the Lift:
To lower the lift, the operator pulls the release lever which opens the valve, allowing fluid to flow back to the reservoir. This controlled return collapses the scissor arms and lowers the platform safely.
Features Of Manual Scissor Lift
- Foot-Operated Pedal System – Hands-free lifting and lowering mechanism designed for comfortable operation without requiring manual hand lever engagement.
- Lever-Controlled Descent – Pull-back lever function enables safe and controlled lowering of loads, preventing sudden or uncontrolled drops.
- Compact Design – Space-efficient dimensions that allow easy maneuverability and smooth operation in tight and confined spaces.
- Heavy-Duty Steel Construction – Robust mild-steel frame built to withstand continuous industrial use and support significant load capacities.
- Hydraulic Mechanism –Powered by hydraulic systems for smooth vertical motion and reliable lifting performance without external power requirements.
- No External Power Requirement – Operates independently without electricity, making it suitable for remote locations and areas without power access.
- Lockable Caster Wheels – Mobile wheels with locking mechanism to secure the lift in position during load handling and operation.
- Customizable Load Capacities – Available in multiple capacity options tailored to different industrial applications and requirements.
- Ergonomic Design – User-friendly configuration that reduces operator strain and fatigue during extended use periods.
- Minimal Maintenance Requirements – Designed for easy upkeep with routine hydraulic system checks and moving part lubrication being the primary maintenance needs.

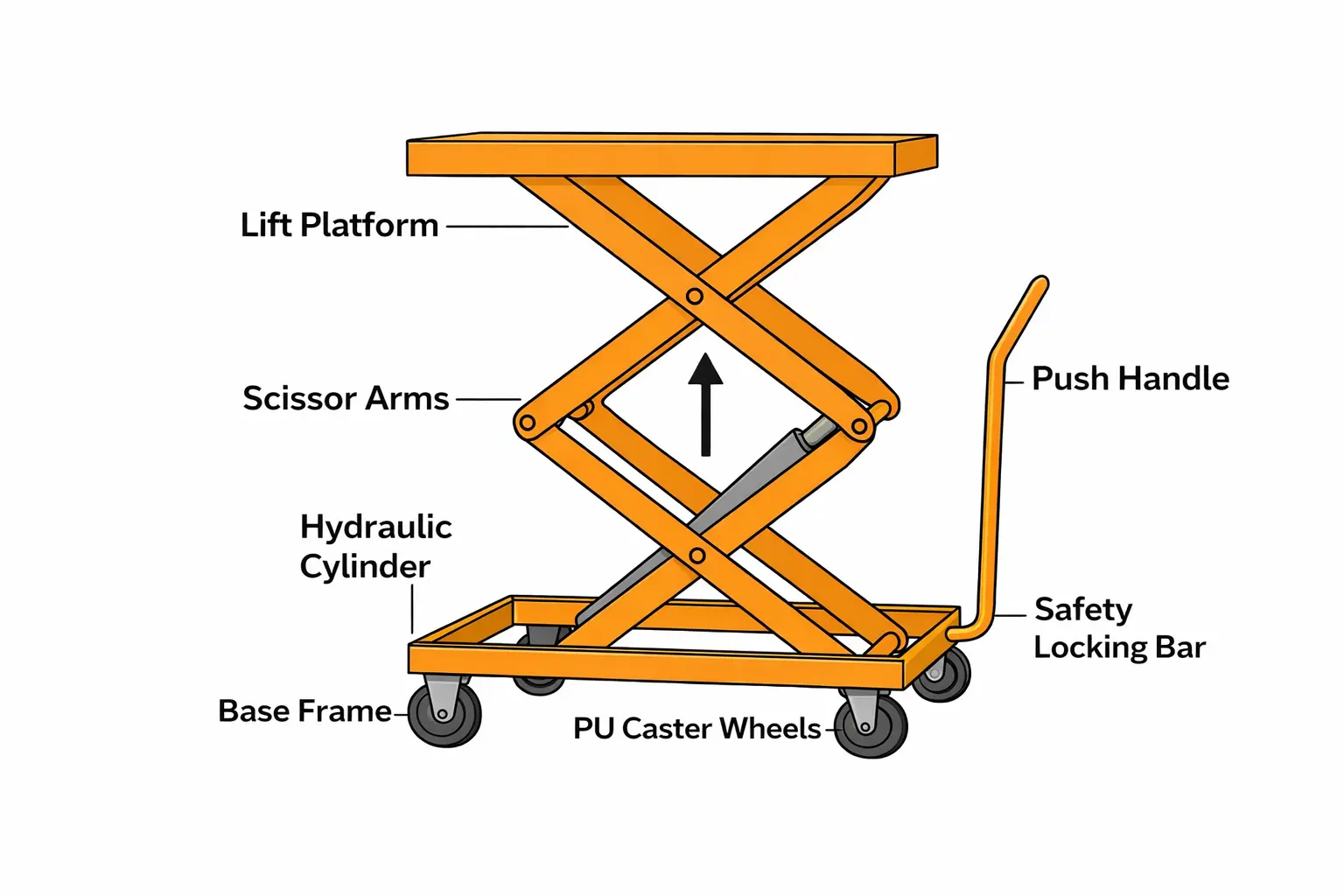

Parts Of Manual Scissor Lift
- Platform – Sturdy top work surface where loads or workers are placed during lifting operations. It is typically made of heavy-duty steel with anti-slip flooring for safety.
- Base Frame – Structural foundation that provides stability and support for the entire lift assembly. It is engineered with rigid brackets and tracks to guide scissor leg movement.
- Scissor Arms– The X-shaped metal components that expand and contract to raise and lower the platform vertically. They form the pantograph mechanism connecting the base to the platform.
- Hydraulic Cylinder – A power actuator filled with hydraulic fluid that extends to push the scissor arms open and raises the platform. It retracts to lower the lift when pressure is released.
- Hydraulic Pump – A mechanical device that generates pressure in the hydraulic fluid system. In Avcon’s manual lifts, it is typically foot-pedal operated.
- Hydraulic Reservoir – A container that stores hydraulic fluid and provides a supply to the hydraulic system. It also helps dissipate heat during operations.
- Hydraulic Hoses and Fittings – Flexible conduits that carry pressurised hydraulic fluid from the pump to the cylinders and control valves. They must withstand high pressure and accommodate scissor leg movement.
- Control Valve– A manual control mechanism that regulates hydraulic fluid flow direction and pressure. It is typically operated by a pull-back lever for controlled descent.
- Caster Wheels – Mobile wheels attached to the base frame that enable the lift to be moved to different locations. They feature locking mechanisms to secure the lift during operation.
- Guardrails – Safety barriers installed around the platform perimeter to prevent operator falls. They are typically made of steel and comply with safety standards.
Types of Scissor Lifts we offer
Advantages Of Manual Scissor Lift
- Safety-Enhanced – Reduces workplace injuries through stable platforms, guardrails, and controlled descent mechanisms designed for worker protection.
- Cost-Effective – Eliminates the need for external power and reduces labor costs by minimizing the requirement for additional personnel to reposition equipment.
- Easy to Operate – Requires minimal training due to intuitive foot-pedal and lever controls, allowing workers to quickly learn and safely use the equipment.
- Resilient Structure – Built with heavy-duty steel construction to handle tough, rough, and heavy-duty industrial use across demanding environments.
- No External Power Required – Operates independently using hydraulic systems, making it suitable for remote locations without electricity access.
- Compact and Maneuverable – Fits into confined spaces and tight warehouse areas with its space-efficient design and mobile caster wheels.
- Customisable Solutions – Available in various load capacities and configurations tailored to meet specific industry needs and application requirements.
- Ergonomic Design – Reduces operator strain and fatigue during extended work periods by prioritising user comfort and ease of handling.
- Low Maintenance – Requires minimal upkeep with routine hydraulic system checks and lubrication, ensuring long-term reliability and reduced operational expenses.
Technical Specification
Lifting Capacity
300 – 1000 kg
Lifting Height
800 – 1700 mm
Platform Size
900 × 600 mm to 1200 × 800 mm
Lowered Height
300 – 500 mm
Operation Type
Manual Hydraulic (Foot Pump)
Frame Material
High-Grade Steel, Powder Coated
Wheels
Heavy-Duty PU/Nylon with Brake
Safety Features
Overload Valve, Stop Bar, Controlled Descent
Video Gallery
Why Choose Avcon
Material Handling Manufacturers You Can Trust
At Avcon Systems, we deliver more than material handling products we provide complete, performance-driven solutions backed by 45+ years of expertise, reliable after-sales support, and a strong customer-first approach.
In-House Manufacturing
Every Avcon product is designed, fabricated, and tested under one roof to ensure consistent quality and precision in performance.
Advanced Technology
Our systems integrate hydraulic, electric, and automation technologies for efficient and reliable handling operations.
Durability & Low Maintenance
Avcon machines are made from heavy-duty materials with corrosion-resistant coatings, ensuring long life and minimal service downtime.
Custom-Engineered Solutions
We specialize in tailor-made equipment that fits your specific industrial process, floor space, and operational needs.
Safety & Compliance
Each product is built following strict ISO and CE standards, featuring overload protection and stable lifting mechanisms.
Complete Support
From installation to maintenance and after-sales service, our team ensures smooth and worry-free operation throughout your equipment’s life cycle.
Transform your operations with self-driving elevation solutions.
Achievements
Years Completed
0
+
Solution Provided
0
+
Clients
0
+
Our Nationwide Customer Base
We are proud to serve customers all over India, including Goa, Ahmedabad, Surat, Baroda, Bhopal, Kolkata, Madurai, Coimbatore, Diu and Daman, Haridwar, Uttarakhand, Rudrapur, Odisha, Bhubaneswar, Morbi, Udaipur, Hyderabad, Baddi, Chandigarh, Manesar, Bhiwandi, Silvassa, Vapi, Tarapur, Bewandi, Mahape, Ambernath, Sangli, Satara, Alibaug, Kolhapur, Sikkim, Darjeeling, Lucknow, Mangalore, Vijayawada, Vizag, Amritsar, Manipur, Guwahati, Indore, Noida, Gurgaon, Jammu, Thane, Chennai, Bangalore, Nashik, Nagpur, Pune, and Mumbai.
FAQS -Manual Scissor Lift
Avcon manual lifts include safety locks, overload protection valves, anti-skid platforms, and smooth hydraulic control for safe operation during load handling.
Regular maintenance involves checking hydraulic fluid levels, inspecting seals and joints, cleaning the platform, and ensuring all moving parts are lubricated.
Yes, Avcon provides customised manual scissor lift solutions based on platform size, lifting height, and load requirements to suit specific industrial applications.
Avcon’s Manual scissor lift is cost-effective, low-maintenance, and ideal for environments where power sources are limited, while still offering reliable lifting performance.
Yes, Avcon provides readily available spare parts and service support to ensure minimal downtime and long product life.
When choosing a scissor lift, consider factors like load capacity, lift height, platform size, power type, mobility, safety features, and build quality to ensure it fits your specific application and work environment.
Avcon manual scissor lift offers superior build quality, durability, and service support. Made with industrial-grade hydraulics and powder-coated steel, they ensure long-term reliability. Unlike low-cost options, Avcon provides customisation, spare parts, and after-sales assistance.
Yes. Avcon manual scissor lift is built for heavy-duty, long-term industrial use, capable of handling frequent lifting cycles. Their robust construction, easy maintenance, and consistent hydraulic performance make them ideal for manufacturing, warehousing, and assembly applications.
